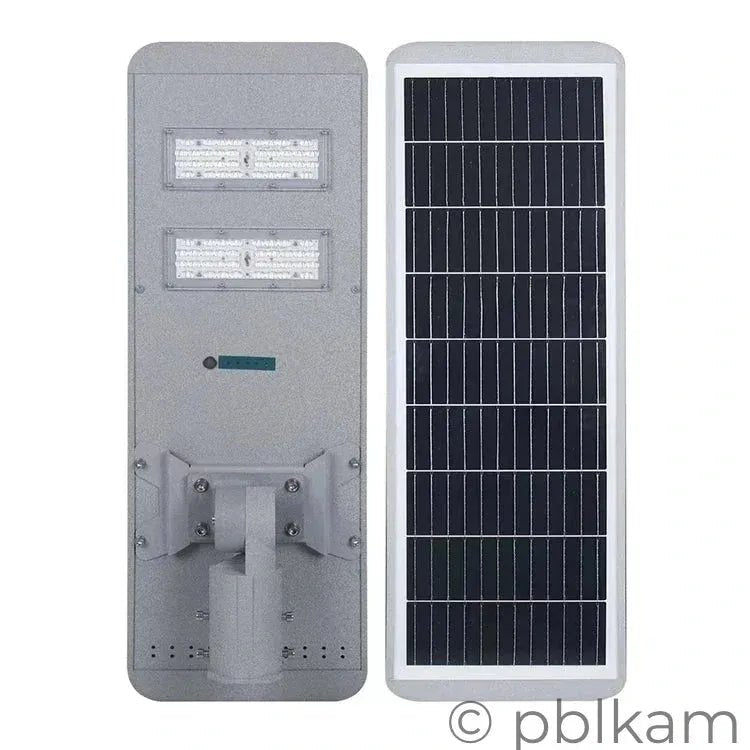

TR248 All-in-One Integrated Solar Street Light
The TR248 series is a high-performance integrated solar street light designed for urban roads, parking lots, residential communities, and industrial parks. With a sleek all-in-one design, it combines the solar panel, LED light, battery, and controller into a single compact unit for easy installation and maintenance-free operation.
Key Features
- All-in-one integrated design — no wiring required
- High-efficiency monocrystalline solar panel
- LiFePO4 lithium battery (3.2V) for long cycle life and safety
- Bridgelux / SMD LED chips for superior luminous efficacy (120lm/W)
- Intelligent PIR motion sensor with multiple lighting modes
- IP65 waterproof rating for all-weather outdoor use
- Die-cast aluminum housing for durability
- Color temperature options: 3000K–6500K
- Working temperature: -20°C to +60°C
Technical Specifications
| Parameter | TR248-A | TR248-B | TR248-C |
|---|---|---|---|
| Solar Panel Power | 5V 30W | 5V 45W | 5V 50W |
| Solar Panel Type | Monocrystalline Silicon | ||
| Battery | 3.2V 45AH | 3.2V 60AH | 3.2V 75AH |
| Battery Type | LiFePO4 Lithium | ||
| LED Power | 30W | 50W | 60W |
| LED Chip | Bridgelux SMD, 120lm/W | ||
| Color Temperature | 3000K / 4000K / 4500K / 6000K–6500K | ||
| Lighting Mode | All-night / Motion Sensor (PIR) | ||
| Charging Time | 6–8 hours (full sun) | ||
| Backup Days | 1–3 days | 2–4 days | 2–4 days |
| Waterproof Rating | IP65 | ||
| Housing Material | Die-cast Aluminum | ||
| Working Temperature | -20°C to +60°C | ||
| Installation Height | 4–6m | 4–8m | 7–9m |
| Pole Diameter | Ø60mm (ISO-standard) | ||
| Product Size | L965*W297*H50mm | L1098*W297*H50mm | L1098*W297*H50mm |
| Weight | 6.5 KG | 7.5 KG | 8.5 KG |
| Certification | CE, RoHS, ISO 9001 | ||
Applications

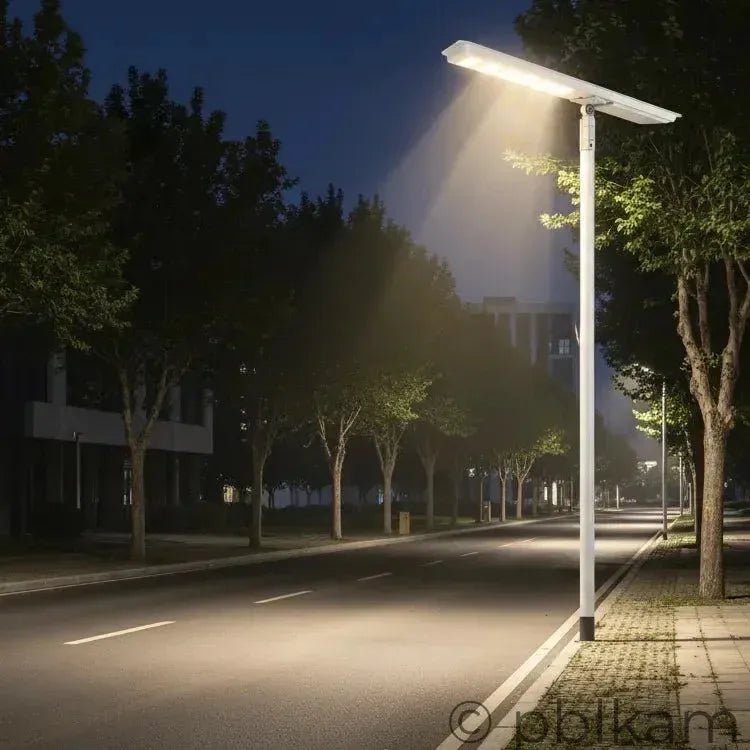

Ideal for urban roads, rural roads, parking lots, residential communities, industrial parks, campuses, and pathways.
Frequently Asked Questions (FAQ)
Q: How many rainy days can the light work without sunlight?
A: The TR248-A can work 1–3 rainy days, while TR248-B and TR248-C can work 2–4 rainy days, depending on the lighting mode selected.
Q: Does it work automatically at night?
A: Yes. The built-in light sensor automatically turns the light on at dusk and off at dawn. No manual operation is required.
Q: What is the PIR motion sensor mode?
A: In motion sensor mode, the light operates at low brightness (e.g., 30%) when no movement is detected, and switches to full brightness when motion is detected within range. This significantly extends battery life.
Q: Is installation difficult?
A: No. The all-in-one design requires no wiring. Simply mount the unit onto a standard Ø60mm pole and it is ready to use.
Q: Can it be customized (OEM/ODM)?
A: Yes. Ricon Lighting offers full OEM/ODM services including custom wattage, color temperature, branding, and packaging. Please contact us for a custom quote.
Q: What warranty is provided?
A: All TR248 series lights come with a 3-year manufacturer warranty. We provide replacement parts and technical support throughout the warranty period.
Q: What certifications does the product have?
A: The TR248 series is CE, RoHS, and ISO 9001 certified, meeting international quality and safety standards.
